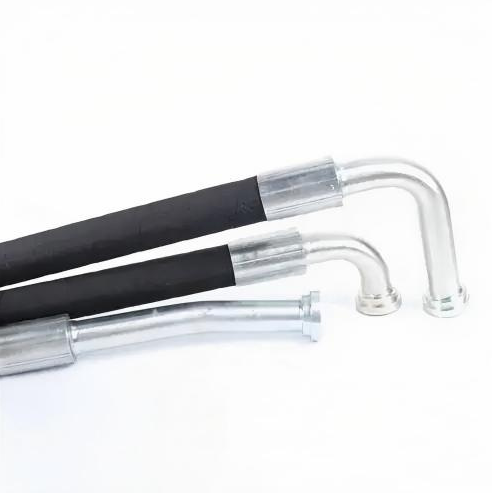

High pressure hose with three-layer steel wire and a pressure resistance of 50MPa

Hydraulic power transmission serves as the core power supply mode for heavy mining equipment, large forging machinery and special engineering machinery. Conventional medium-pressure hoses cannot withstand extreme instantaneous pressure impact in heavy-load working conditions, so ultra-high pressure steel wire braided hose has become a key supporting component of high-load hydraulic systems. This type of hydraulic ultra-high pressure hose is designed for long-term stable transmission of hydraulic oil under severe pressure conditions, solving the pipeline failure risks brought by frequent pressure surges in industrial hydraulic circuits.

The core bearing structure of this ultra-high pressure steel wire braided hose adopts three-layer steel wire winding layout, which is the core difference from single-layer and double-layer reinforced hoses. High-tensile steel wires are wound in staggered spiral angles between inner lining and outer rubber layer, forming a three-dimensional pressure-bearing buffer structure. The multi-layer winding structure evenly disperses internal hydraulic pressure to each layer of steel wire, avoiding local stress concentration on the pipe wall. Compared with ordinary braided hoses, three-layer steel wire winding design significantly improves the overall anti-burst performance and structural stability of the hydraulic ultra-high pressure hose during long-cycle operation.

This hydraulic ultra-high pressure hose is manufactured to match a rated working pressure of 50MPa, adapting to ultra-high pressure hydraulic circulation scenarios in heavy industry. The inner lining is made of oil-resistant polymer material with stable chemical inertness, which prevents hydraulic oil penetration and lining swelling under long-term high-pressure extrusion. The outer protective rubber layer resists outdoor abrasion, temperature fluctuation and aging, maintaining complete pipe shape after repeated bending and extrusion. Under continuous 50MPa operating pressure, the hose body will not produce permanent deformation, joint oil seepage or wall cracking, meeting the continuous operation requirements of heavy hydraulic equipment.

Ultra-high pressure steel wire braided hose with three-layer winding and 50MPa pressure resistance is widely deployed in multiple high-load industrial fields. It is applicable to hydraulic systems of hydraulic presses, large mining support equipment, tunnel boring machinery and heavy lifting devices. These working scenarios feature frequent pressure fluctuation and heavy instantaneous load, which put forward strict requirements on pipeline pressure resistance and fatigue resistance. Ordinary hydraulic hoses are prone to early damage in such environments, while the 50MPa-rated hydraulic ultra-high pressure hose can maintain stable conveying performance and reduce pipeline replacement frequency in long-term production.

All finished ultra-high pressure steel wire braided hose products pass unified industrial testing procedures before delivery. Test items include static pressure holding test under 50MPa, bending fatigue cycle test and medium compatibility soaking test. The three-layer steel wire winding structure is inspected layer by layer to ensure uniform winding density and consistent pressure bearing capacity of each hose. Standard testing rules eliminate unqualified products with insufficient tensile strength or uneven reinforcement layers, guaranteeing that each hydraulic ultra-high pressure hose can meet the pressure demand of matching heavy hydraulic systems.

With the continuous upgrading of heavy industrial equipment toward higher load and higher output pressure, the market demand for 50MPa three-layer steel wire winding hydraulic ultra-high pressure hose keeps growing. Equipment operators pay more attention to pipeline pressure resistance, service life and operation safety when selecting hydraulic accessories. Continuous structural optimization of ultra-high pressure steel wire braided hose will focus on improving bending flexibility while maintaining 50MPa pressure resistance, to provide safer and more durable fluid transmission solutions for all kinds of ultra-high pressure hydraulic systems.
